PIC MPG meter / DSC01027
Karl Grabe
04/09/03

Previous Home Next



DSC01027

Blue DB15 LCD display connector.

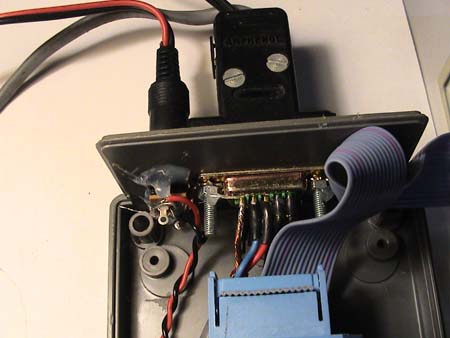

Above is the DB9 connecor used to connect the Fuel Sensor and speedometer input. You can also see the 12Volt connector input top left.
