Nestcam V3 2008 overhead and side camera / DSC00075 http://www.KarlGrabe.com 19/02/2008



below...

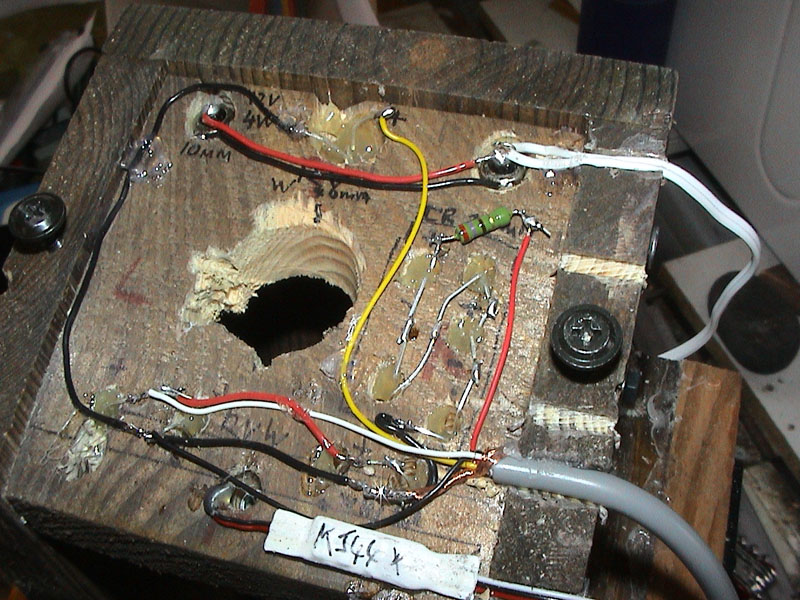

2 x 12vold car panel lights, 4 watt on top row wiht 12 V LED in the middle. Cable - Red: infra red diodes, Yellow: warm white LED, white - white LEDS. Black common (-ve) for leds. The panel lights have a separate cable (bell wire). the audio microphone module is in white at the bottom. the microphone is sticking into the roof but not protruding (dont want birds pecking at it).
