Cork Hydrophone Recordings

Recordings (WAV files) of Snapping Shrimp recorded at Hole Open Bay West (near Old Head of Kinsale) on 27 June 2005 N51 36.763 W8 32.673:

These recordings were made with a home made hydrophone (see photos and link below), pre-amp and and analogue cassette recorder. Water dept was 7m, hydrophone depth 5m. About 20m from the shore.

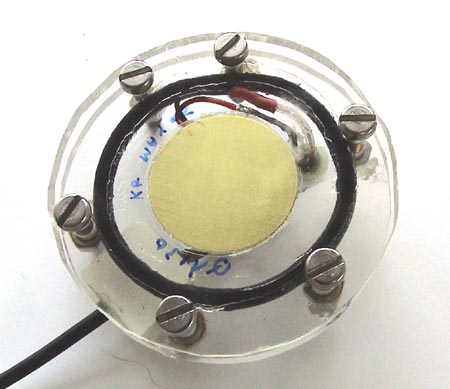

the Hydrophone used, design: Loughborough University.

Build the above Hydrophone & some Links:

Loughborough University Underwater Acoustics Research Group: PDFs: Info on how to build the above DIY hydrophone (local copy) and suitable preamplifier (local copy).

Nauta: Italian company providing hydrophone equipment and useful tips on recording using a hydrophone (copy) and and a free sound analysis program. Cetacean Research Hydrophones (available in Europe from Nauta)

Marmam: List of hydrophone manufacturers with links

Another DIY hydrophone. (I haven't tried this one)

Sound of the sea from Rhode Island Office of the Marine: Sample sounds and descriptions of common dolphins, Snapping Shrimp, humpback whale etc.

Pop Up hydrophone recorders - Autonomous Recording Units, Cornell University

T-PODS for recording dolphin and porpoise cliks. Lots of info about echo-location, frequencies etc.

Other home-brew hydrophones tried (but not as good as the one above):

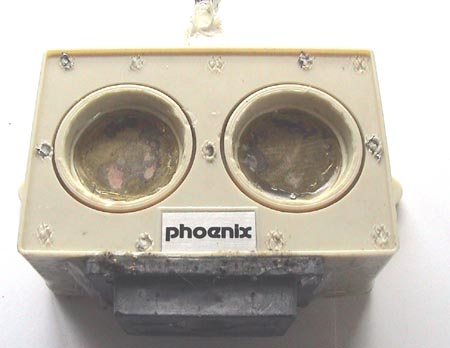

Security alarm sounder, electronics removed and plastic apertures opened - very sensitive but resonances due to large volume of air inside. Tried adding cotton wool as a baffle but still get resonance. Lead weight underneath to counteract buoyancy. The two piezo electric disks already had water proof seals and are wired in parallel.



.

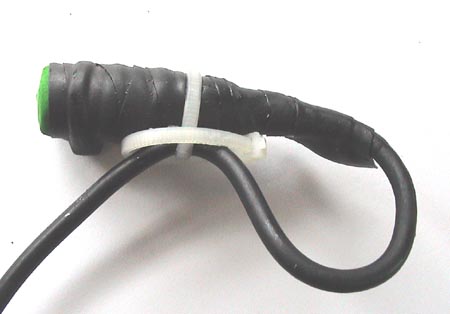

Telephone condenser microphone, with built in pre-amp, covered in rubber to keep water out. It shouldn't work that well but it gives good results.
